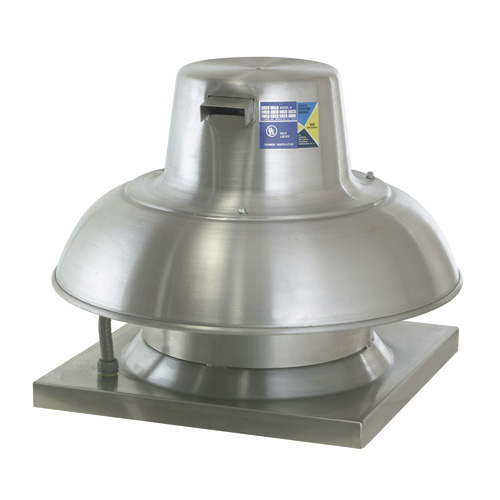

Centrifugal Downblast Fans: Direct Drive

Air Volume: 51 - 3395 CFM
Maximum SP :2.47" wg. standard air density

Features at a Glance
  • Spun aluminum housing for rust-free, weather resistant durability
  • Standard bird screen
  • Non overloading backward inclined wheels, blades and inlets fabricated from 1100-H14 aluminum
  • All sizes can be wall mounted
  • Wire conduit to provide a clear channel for electrical connections
  • Safety Disconnect
  • Variable speed control

  • Gravity Damper
  • Motorized Damper
  • Wall Mount Sleeve
  • Roof Curb

KTech certifies that Model DR10-HK thru DR85-HK shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests & procedures in accordance with AMCA Publication 211 and Publication 311, and comply with the requirements of the AMCA Certified Rating Program. Models DR10-HK thru DR85-HK are ETL Listed under file number 3049729-002 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.
